I cannot do the following in the TELLUS-HMI mode: WAV file replay JPEG file display Reading and writing a recipe file [RECxxxx.csv]

I cannot do the following in the TELLUS-HMI mode:
WAV file replay
JPEG file display
Reading and writing a recipe file [RECxxxx.csv]
Category :

Answer

[Causes]

  1. WAV files or JPEG files are not stored in the correct folder.
  2. For WAV file replay, settings on a screen program is not correct.



[Solutions]

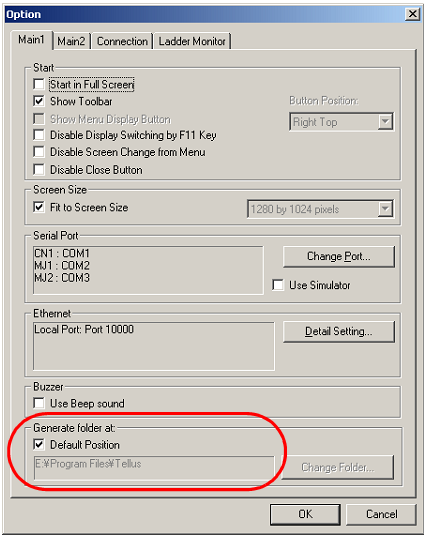

  1. The location is set under [Generate folder at:] in the [Option] dialog box.




    [Default Position] is checked:

    In the location where the screen data in the HMI mode is stored, a folder under the name of the screen data is created.



    • For TELLUS4
      Create a WAV, a JPEG, and a RECIPE folder manually under storage>sd or usb>EXT0000 (access folder) and store these files respectively.


    • For TELLUS3
      Create a WAV, a JPEG, and a RECIPE folder manually in it and save these files respectively.



    [Default Position] is not checked:

    Directory to generate a folder is determined in [Option] > [Change folder].

    1. For TELLUS4
      Create a WAV, a JPEG, and a RECIPE folder manually under storage>sd or usb>EXT0000 (access folder) and store these files respectively.



For TELLUS3
Create a WAV, a JPEG, and a RECIPE folder manually in it and save these files respectively.

e.g.) TELLUS3



Folder File name Content
JPEG  xxxx.jpg, JPxxxxx.jpg  JPEG file
RECIPE  RECxxxx.csv, xxxxxxxx.csv  Recipe file
WAV  WAxxxx.wav  WAVE file


2. For WAV file replay, start V-SFT and go to [System Setting] > [Other] > [Storage Setting] and check [Store WAV File in storage] check box.
