How to sound a continuous buzzer according to a command from the PLC (external)

How to sound a continuous buzzer according to a command from the PLC (external)

Category :

Answer

Configure settings as follows.

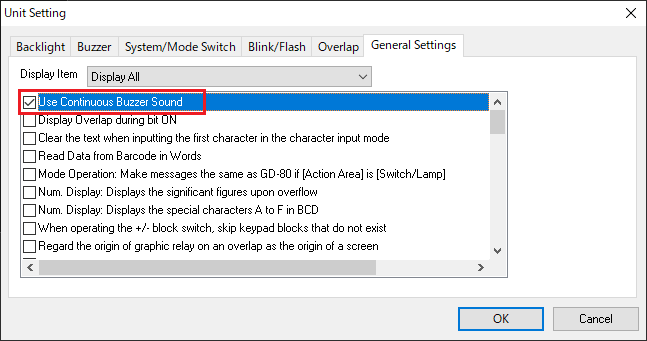

  1. Select [System Setting] → [Unit Setting] → [General Settings] on the V-SFT editor and check [Use Continuous Buzzer Sound].


  2. A continuous buzzer sounds while bit 10 of read area "n" is set (ON).

It is also possible to sound a one-shot buzzer or an error buzzer according to the command from the PLC.
One-shot buzzer: Bit 8 of read area "n" at the leading edge (0 → 1)
Error buzzer: Bit 9 of read area "n" at the leading edge (0 → 1)



[How to check the read area]

V8/TS series

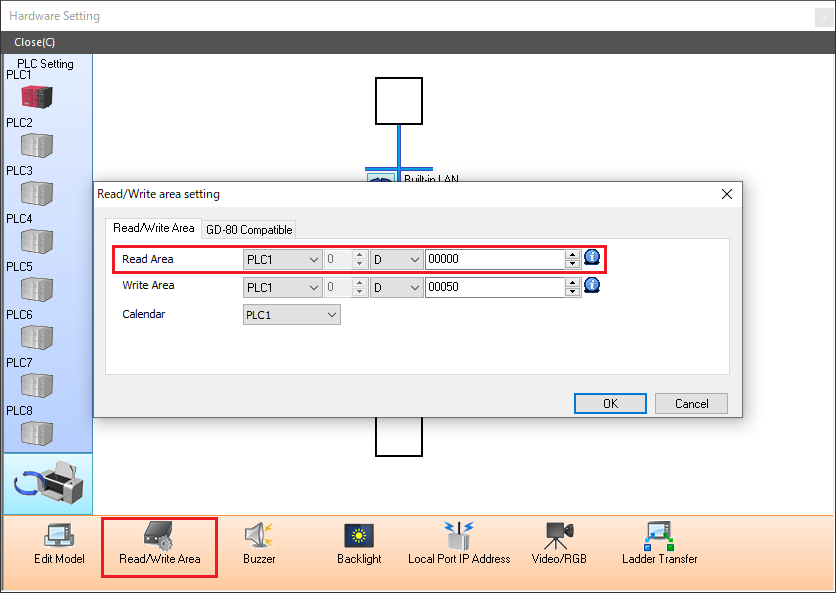

Check position: V-SFT-6 editor [System Setting] → [Hardware Setting] → [Read/Write Area] → [Read Area]


V7 series

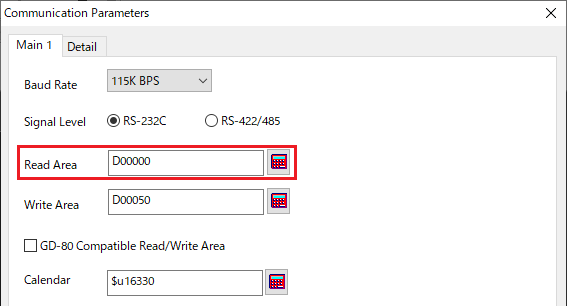

Check position: V-SFT-5 editor [System Setting] → [PLC Communication] → [Communication Parameter] → [Main 1]
