What types of cables can be used for screen program transfer?

What types of cables can be used for screen program transfer?

Category :

Answer

Screen program transfer is possible using a commercially-available USB or Ethernet cable.
The "V-CP" or "UG00C-T1" serial transfer cable manufactured by Hakko Electronics can also be used.

The following table lists each series and the corresponding available transfer methods.

Series

USB

Ethernet

Serial
("V-CP" , "UG00C-T1") *1

 V10
 V9

〇
V10 / V9 side: USB-miniB

〇*2

〇

 TS2060(i)

〇
TS2060 side: USB-miniB

△*2*3

〇

 V8
 UG40

〇
V8 / UG40 side: USB-B

△*3*4

 〇

 V7
 UG30

△
V706/V715/UG230/UG630 only
V7 / UG30 side: USB-B

△*3*5

〇

 V6
 UG20
 Simple POD

×

 △*6

〇

 V4 *7
 V4S
 UG400
 UG210

×

×

 〇
+ "ADP25-M" option

 GD-80 *7
 GD-81S
 UG200

×

×

〇
+ "ADP25-M" option

 GD-80S

×

×

△*8

*1 If the computer is not equipped with a serial port, use a commercially-available USB-to-serial converter.
     Connect "V-CP" or "UG00C-T1" to the MJ1 port on MONITOUCH.
*2 A straight cable can also be used with or without a hub.
*3 Type with built-in LAN port.
*4 When the "CU(N)-03-x","UG03I-E" communication unit is installed.
*5 When the "CU-03-x","UG03I-E" communication unit or "DU-01","UG230A-DCL" option unit is installed.
*6 When the "CU-03-x","UG03I-E" communication unit is installed.

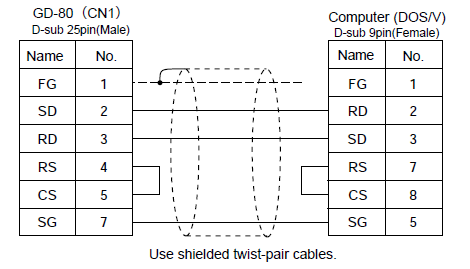

*7 It is possible to make your own cable for serial transfer with the V4/GD-80/GD-81S/UG400/UG210/UG200 by referring to the wiring diagram.

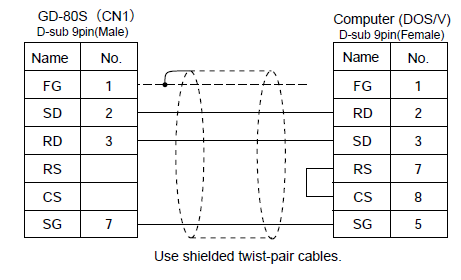

*8 Serial transfer with the GD-80S cannot be performed using the "V-CP" or "UG00C-T1" cable.
     Make your own cable by referring to the wiring diagram.
