I want to show a multi-overlap using macro command but the overlap does not appear.

I want to show a multi-overlap using macro command but the overlap does not appear.

Category :

Answer

Check the following points:



<Causes>

  1. Multi-overlap (icon) is not place on the screen.
  2. Multi-overlap setting (icon) is not correct.
  3. Macro commands are not correct.



  • To show multi-overlap using a switch, please click here .
  • To show multi-overlap using PLC command, please click here .



<Measures>

  1. Go to [Home] or [Parts] > [Multi-overlap] and place a multi-overlap icon.
    This icon still works when you place it outside editing area of the screen.

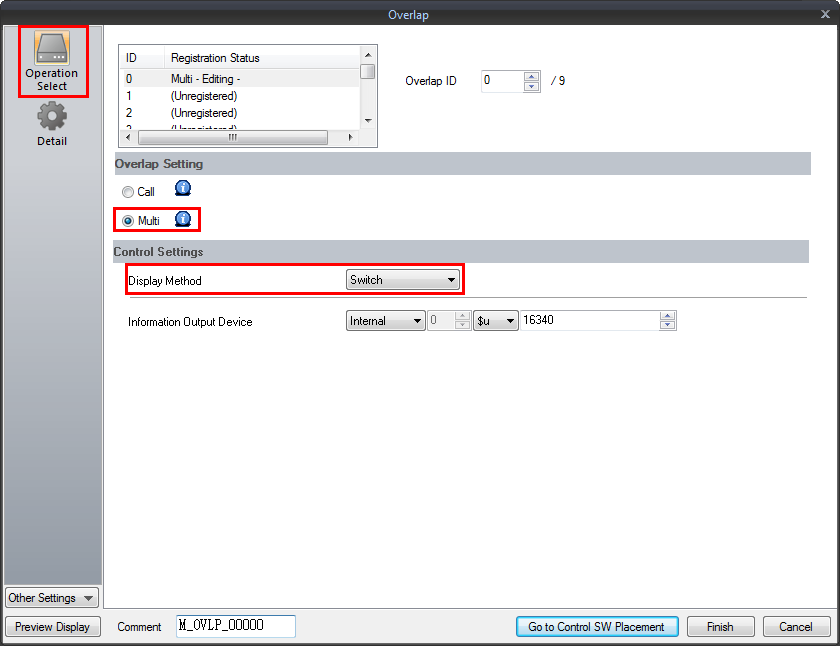

  2. Double-click the multi-overlap icon and sselect [Multi] from [Overlap Setting] and select [Switch] from [Display Method] pulldown box.

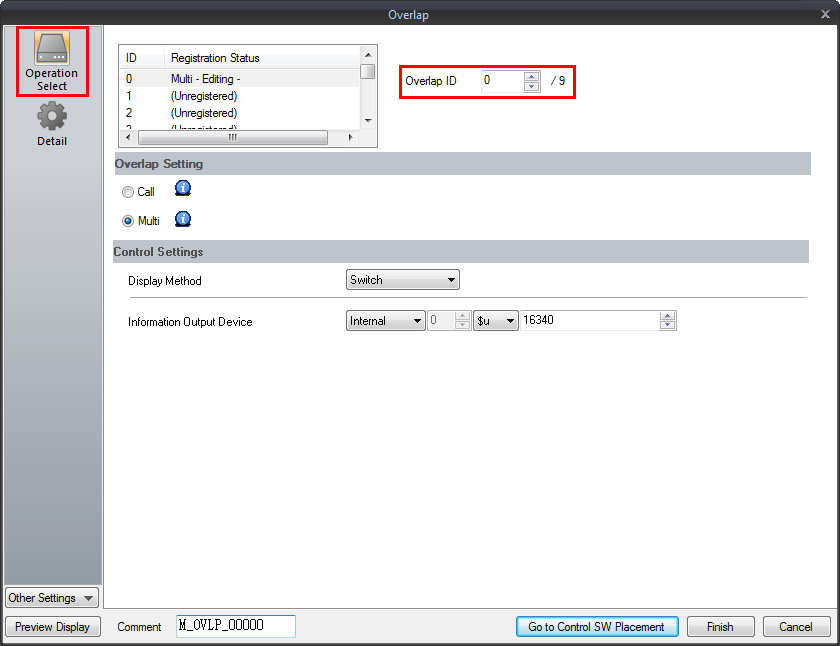

  3. Double-click the multi-overlap icon and check "Overlap ID" in [Operation Select] dialog box.


    Check if the overlap ID is the same as the ID set in the multi-overlap icon. Also make sure that the overlap library number is the one you wish to show, as well as macro command.

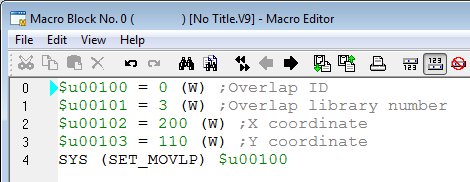

    E.g.) Show overlap library No. 3
