I want to output the results of error checking and device search to a file.

I want to output the results of error checking and device search to a file.

Category :

Answer

The results of error checking and device search can be output to a CSV file.

[Error Check]

The results of [Tool] → [Error Check] in V-SFT-6 can be exported to a CSV file.


[Operating procedure]

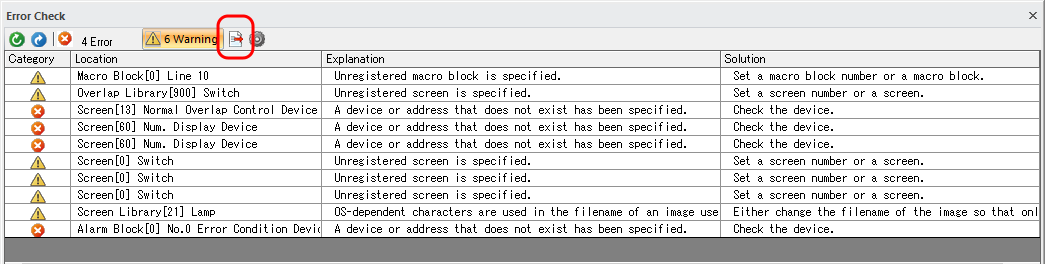

  1. Click the export icon in the [Error Check] window.

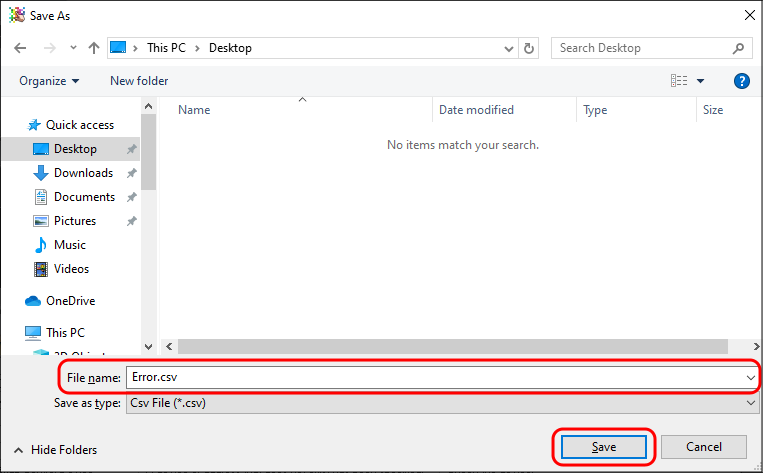

  1. Select the filename and save location, and then click [Save].




[Device Search]

The results of [Tool] → [Search] → [Device] in V-SFT-6 can be exported to a CSV file.


[Operating procedure]

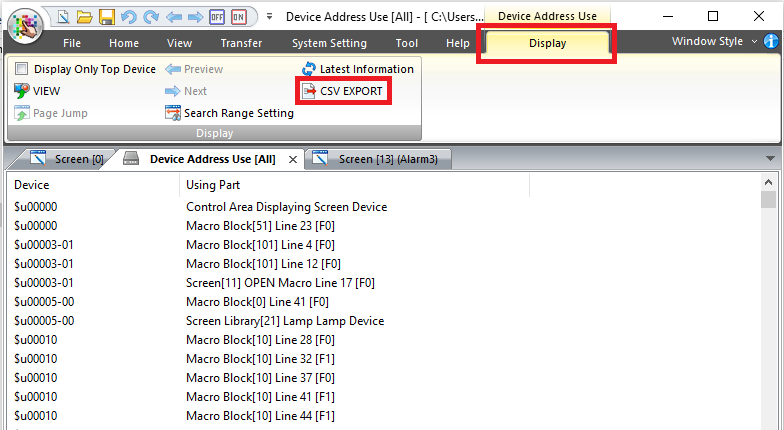

  1. Open the result of device search (Device Address Use) and click [Display] → [CSV EXPORT] in the ribbon menu.

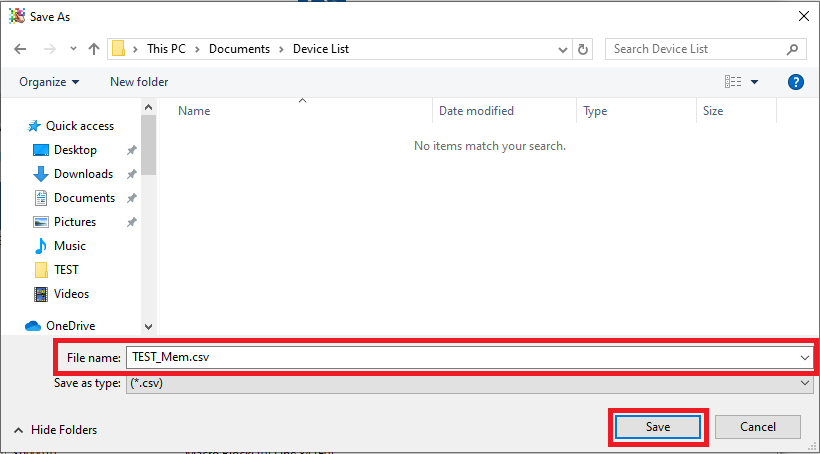

  1. Select the filename and save location, and then click [Save].
