"Error : XX (XX : XXX)"

"Error : XX (XX : XXX)"

Category :

Answer

This error is displayed on the V/TS series when an error is detected in the transferred screen data.



<Solutions>

Read the error code as shown below. For more information, refer to the error code list.

Error  XX  XX :  XXX

            (1)　(2)　 (3)



(1)Error number.
(2)Item number: Indicates the edited screen or other place where the error is detected.
(3)Sub item number: Indicates the screen number where the error is detected.



In addition, error check can be used on the configuration software V-SFT to locate the cause of the error and solve the error.



How to check: V-SFT-6

  1. Click [Tool] [Error Check] on the V-SFT-6 editor.



Double-click the error line to jump to where the error is occurring.



How to check: V-SFT-5

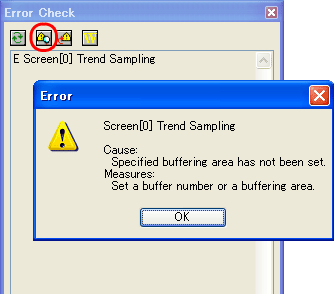

  1. Click [Tool] [Error Check] on the V-SFT-5 editor.
  2. Move the cursor to the error on the [Error Check] window.
  3. Click the [Error Details] icon.

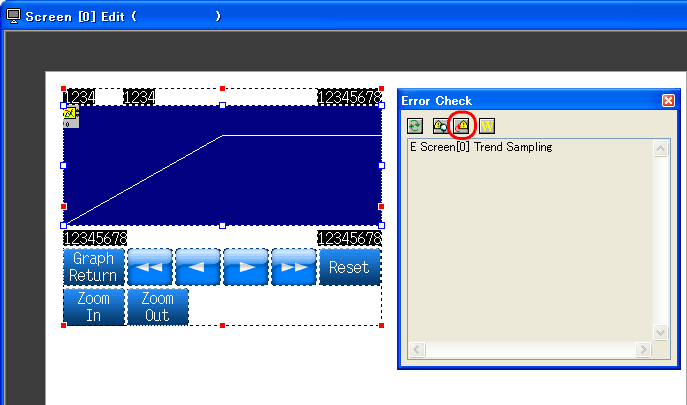

Move the cursor to the error on the [Error Check] window.
Click the [Jump to Error Item] icon to jump to where the error is occurring.
