I want to check network connection of Ethernet.

I want to check network connection of Ethernet.

Category :

Answer

Check the network condition with V10/V9's [Network Test] and [Duplicate IP Test] screens.

Network test (send ping command)

This is to check whether the V10/V9 establishes connection with target device.

  1. Display V10/V9's local screen.
    * How to switch to the local screen
       V10 series: Click here.
       V9 series: Click here.

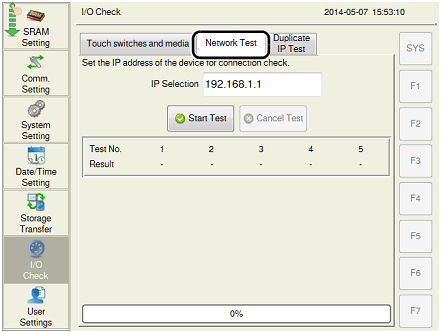

  2. From the left pane, go to [I/O Check] > [Network Test].



  3. Enter the target IP address to [IP selection] and press [Start Test] button.
    Test results:
    OK: Network connection is established.
    NG: Network connection is not established. Please check LAN cables and the IP address.



Duplicate IP Test

This is to check whether any device with the same IP address as V10/V9's exists on the network.

  1. Display V10/V9's local screen.
    * How to switch to the local screen
       V10 series: Click here.
       V9 series: Click here.

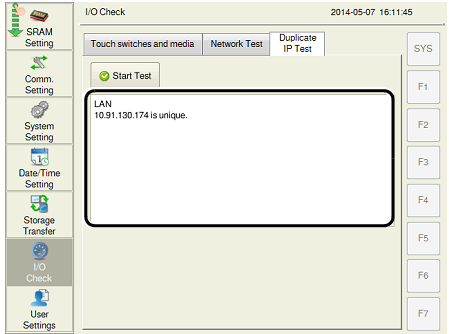

  2. From the left pane, go to [I/O Check] > [Duplicate IP Test].


  3. Press [Start Test] button.


    When a duplicated IP address is found on the network, please check IP address of each device and set the address adequately.
