Can I use VPN function for free?

A 30-day trial license is available for free.
You need to install "V-Connect" management tool and domain registration to use VPN connection.

[Install "V-Connect" management tool]

Download "V-Connect" (VPN remote access service management tool) from our website
For further information, click here.

[Domain registration]

You will register your domain information to "V-Ppower Cloud" authentication server through V-Connect software.
Domain registration must be done by your domain administrator.
For more information, click here.

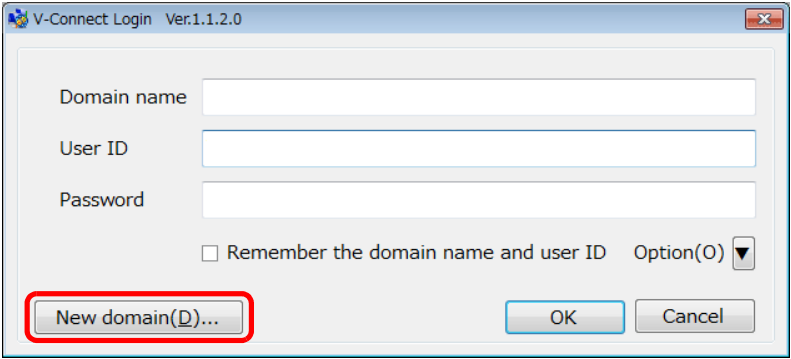

1. Start V-Connect.


2. Click [New Domain...]button

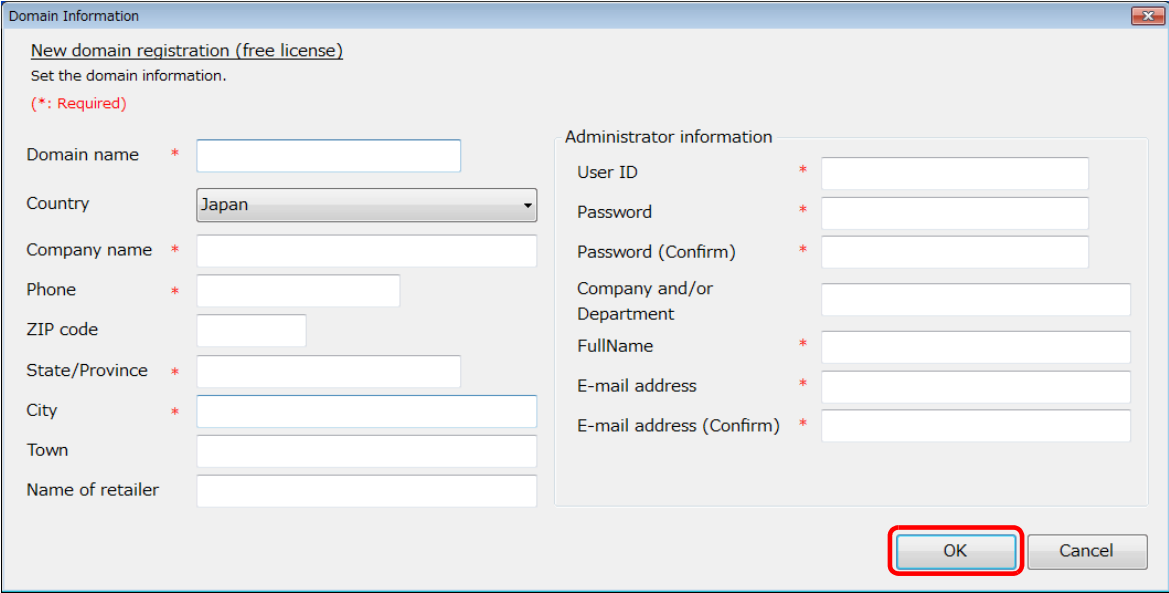

3. Enter necessary information and click [OK].
   Information fields with "*" are compulsory.




   Item		Maximum number of  characters	Remarks
   Domain  Information	Domain name	4 - 16	One-bytealphanumeric characters (case-sensitive) Symbols: !, #, $, %, &, -, ^, @, ., and _
   	Country	-
   	Company name	100	Maximum of 100 one-byte or two-byte characters
   	Phone	30	One-byte numerals Symbols: (, ), -, +, _ , ., and space
   	Zip code	20	One-byte alphanumericcharacters (case-sensitive) Symbols: -, _ , ., and space
   	State/Province	60	Maximum of 60 one-byte or two-byte characters
   	City	120	Maximum of 120 one-byte or two-byte characters
   	Town	120	Maximum of 120 one-byte or two-byte characters
   	Name of retailer	100	Maximum of 100 one-byte or two-byte characters
   Administrator  Information	User ID	8 - 20	One-byte alphanumeric characters (not case-sensitive) Symbols: #, %, &, -, ., and _
   	Password	6 - 20	One-byte alphanumeric characters (case-sensitive) Symbols: #, %, &, -, ., and _
   	Password (Confirm)
   	Company and/or   Department	100	Maximum of 100 one-byte or two-byte characters
   	Full Name	60	Maximum of 60 one-byte or two-byte characters
   	E-mail address	256
   	E-mail address (Confirm)





4. Click [Send] in the [Send Domain Information] dialog box. A message indicating that temporary domain registration is complete is displayed.
   To revise the entered information, click [Cancel] to return tothe entry window.


5. Click the [Confirm domain registration] button. The [Domain Registration Confirmation] window is displayed.


6. Check that the administrator registered in the step3 receives an email with the subject “Hakko Electronics Web Machine Interface - VPN Service
   Temporary Registration”


7. Copy the authentication code in the email and paste it into the [Authentication code] field in the [Domain Registration Confirmation] window. Click [OK].

   Note:
   The validity period of temporary registration is 72 hours.
   If registration is not completed within 72 hours, both the authentication code and temporary registration information are invalidated.


8. Click [Yes] in the confirmation window. A registration complete message is displayed.

For more details about VPN function, please refer to Web Machine Interface manual.
